- New

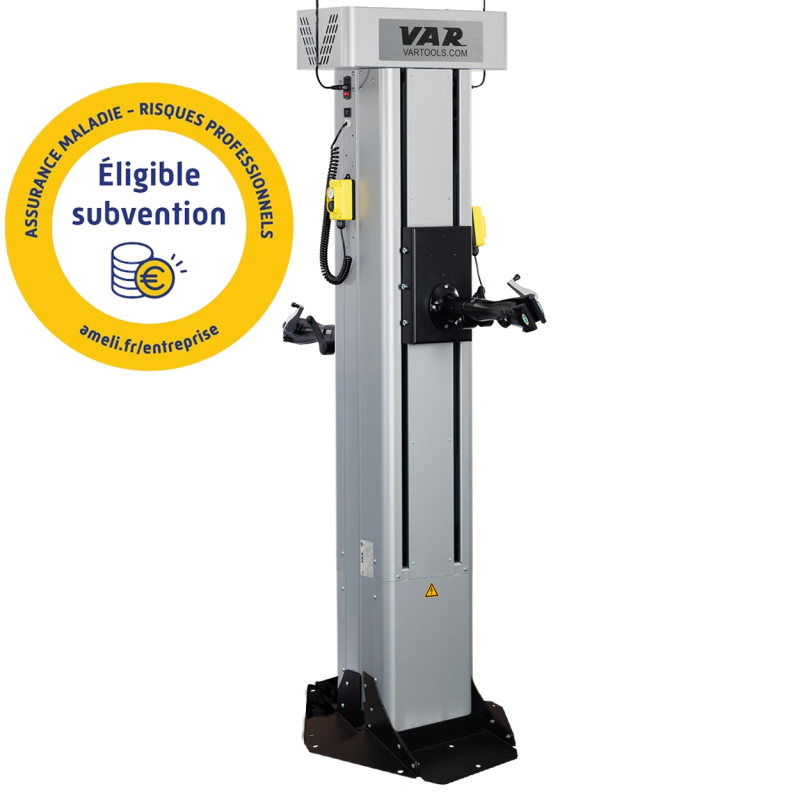

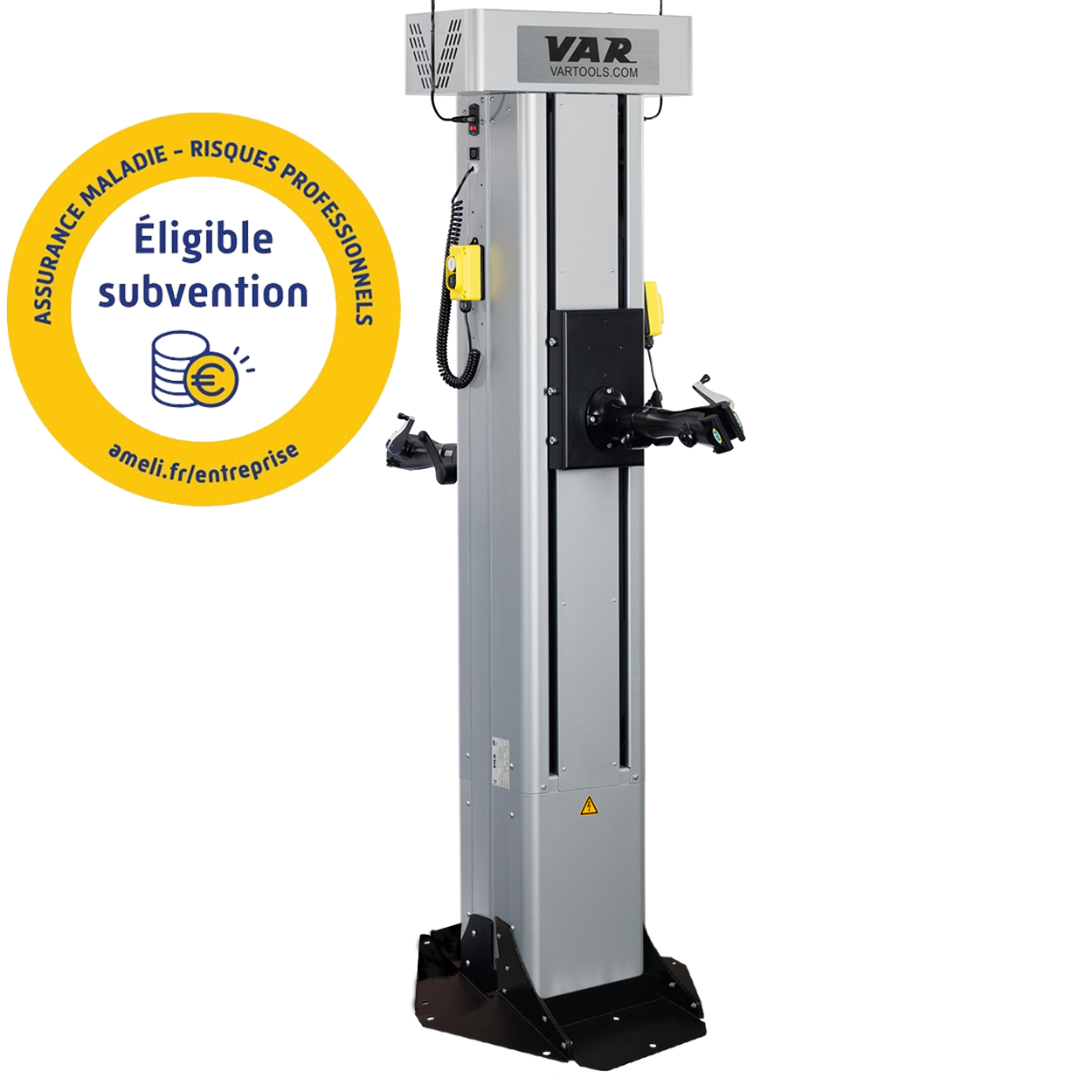

Double electric repair stand with floor fastening - 85Kg
Ref : PR-89200
EAN : 3435540892001
Warranty : 1 year
€7,890.00
Tax included
Technical information
Specification
Technical information
Specification
Maximum lifting capacity (per column)
85 Kg
Full travel distance
1 meter
Time to fully raise (full stroke)
9,6 seconds
Minimum height of clamp
645 / 785 mm
Maximum height of clamp
1650 / 1800 mm
Length of wired remote control cable
50 cm
Extended length of wired remote control cable
1,50 m
Height of remote control cable exit point from the stand
1,80 m
Number of wired remote controls
2 (1 per column)
Number of power inputs
2 (1 per column)
Power input
IEC 320 C13 industrial socket
Supply voltage (power cable provided)
230V~ 50Hz +/- 10%
Power consumption in standby / idle / maximum load
4,6 W / 75 W / 211 W
Electrical supply located on top of the stand
1,63 m
Power output socket for accessory power strip
2 (1 per column)
Output voltage of power output socket
IEC 320 C13 industrial socket
Power output
230V~ 50Hz +/- 10%
Manufactured from folded steel sheet
Epoxy paint
RAL 9006
Weight and dimensions
Specification
Weight and dimensions
Specification
Floor print
74 x 74 cm
Diameter of floor anchorage holes
10,5 cm
Thickness of floor anchorages
8 mm
Total height of the repair stand
210 cm
Dimensions of a column
31 x 14 cm
Dimensions of two columns
31 x 28 cm
Thickness of a column
14 cm
Thickness of two columns
28 cm
Length of a bicycle support arm
50 cm
Weight of a double repair stand PR-89200
180 Kgs
WARRANTY
VAR PR-89100 and PR-89200 are covered 1 year from the invoice date.
The VAR warranty will not apply in the case of poor anchoring to the ground, modification, lack of maintenance, or misuse.
Download
Download the user manual
