- New

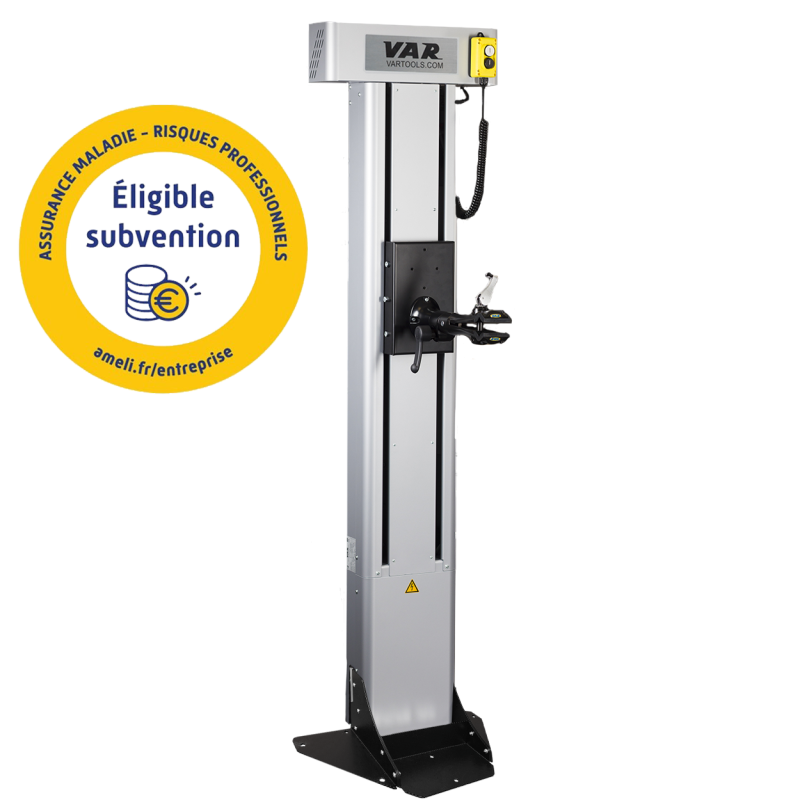

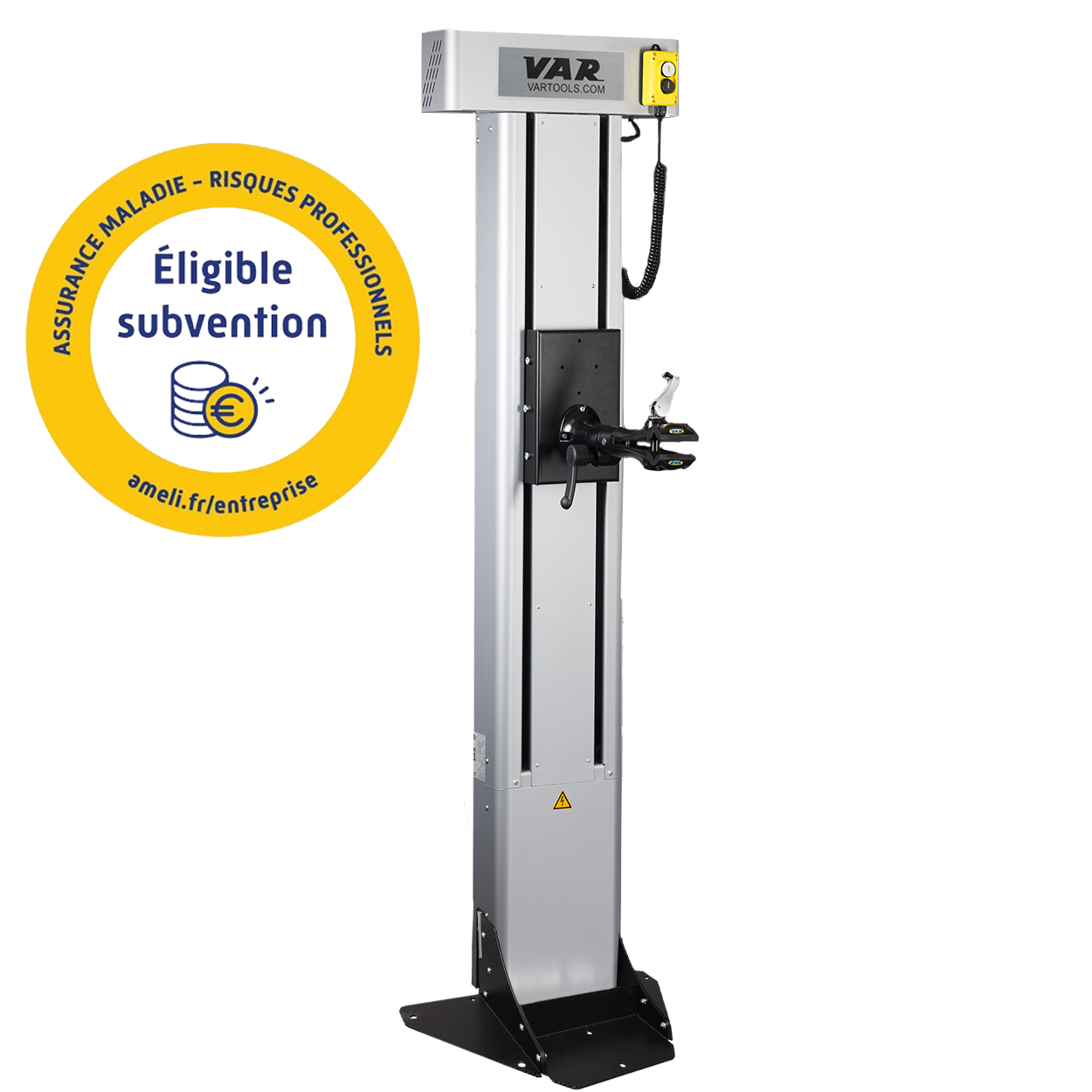

Electric repair stand with floor fastening - 1 clamp
Ref : PR-89100
EAN : 3435540891004
Warranty : 1 year
€3,690.00
Tax included
Technical information
Specification
Technical information
Specification
Maximum lifting capacity
85 Kgs
Full travel distance
1 mètre
Time to fully raise (full stroke)
9,6 seconds
Minimum height of clamp
645 / 785 mm
Maximum height of clamp
1650 / 1800 mm
Length of wired remote control cable
50 cm
Extended length of wired remote control cable
1,50 m
Height of remote control cable exit point from the stand
1,76 m
Power input
IEC 320 C13 industrial socket
Supply voltage (power cord provided)
230V~ 50Hz +/- 10%
Power consumption in standby / idle / maximum load
4,6 W / 75 W / 211 W
Electrical supply located on top of the stand
1,63 m
Power output socket for accessory power strip
IEC 320 C13 industrial socket
Output voltage of power output socket
230V~ 50Hz +/- 10%
Epoxy paint
RAL 9006
Manufactured from folded steel sheet
Dorsal plate to remove when converting a PR-89100 into PR-89200
Weight and dimensions
Specifications
Weight and dimensions
Specifications
Floor print
74 x 74 cm
Diameter of base plate holes
10,5 mm
Thickness of floor anchorages
8 mm
Total height of the repair stand
210 cm
Dimensions of a column
31 x 14 cm
Thickness of a column
14 cm
Length of a bicycle support arm
50 cm
Weight of a single-clamp PR-89100 repair stand
180 Kgs
WARRANTY
VAR PR-89100 and PR-89200 are covered 1 year from the invoice date.
The VAR warranty will not apply in the case of poor anchoring to the ground, modification, lack of maintenance, or misuse.
Download
Download the user manual
